The 3m³ self-loading concrete mixer truck combines powerful performance, flexible articulated design, and efficient loading and mixing for on-site concrete production. Comfortable controls, enhanced visibility, and practical water supply and discharge systems improve productivity, making it ideal for roads, buildings, infrastructure, and remote construction projects.
Модель :
LTM30Масса :
8700 KGДлина, ширина, высота :
6700×2800×4220 (Lifting arm) mm
Concrete Mixer Truck Product Features:
1. Powerful Performance & Reliable Operation: Equipped with a powerful diesel engine and heavy-duty drivetrain, the mixer delivers strong traction and stable performance, making it suitable for demanding construction environments.
2. Flexible Articulated Design: The articulated frame provides excellent maneuverability on uneven and confined job sites, while the synchronous rotation of the drum and cab allows flexible concrete loading and discharge.
3. Efficient Loading & Concrete Production: The integrated loading, mixing, transporting, and discharging system streamlines the entire workflow, reducing manual handling and improving on-site construction efficiency.

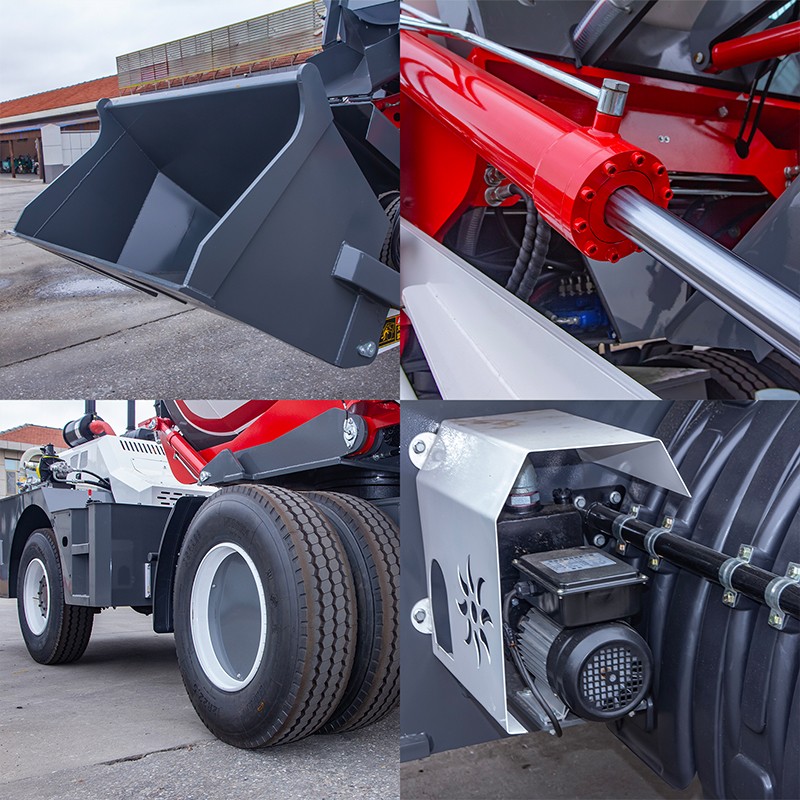

4. Comfortable & Convenient Operation: Pilot controls, front and rear cameras, a display monitor, digital instrument panel, and suspension seat provide intuitive operation, enhanced visibility, and a more comfortable driving experience.
5. Practical Features for Diverse Job Sites: Timed water supply, hydraulic water suction, unloading vibrator, cement hopper, and LED lighting improve material handling and discharge efficiency, supporting reliable operation across various construction projects.
Self Mixing Concrete Truck LTMG product specifications
| Parameter | Unit | LTM30 |
| Vehicle Size (L × W × H) | mm | 6700×2800×4220 (Lifting arm); 7900×2800×3070 (Drop arm) |
| Wheelbase | mm | 3200 |
| Track Width | mm | 1710 |
| Overall Weight | kg | 8700 |
| Engine | / | YCD4J22T-115 |
| Power | kW | 85 |
| Gearbox | / | 280 Separated |
| Drive Axle | / | 2.5T Wheel side reduction axle |
| Tyre | / | 16/70-R22.5 double tyre |
| Capacity of Bucket | m³ | 0.65 |
| Stirring Capacity | m³ | 3 |
| Reduction Ratio | / | 1:28 |
| Rotate Speed | r/min | ≥15 |
| Reducer | / | Made in China |
| Running Speed | km/h | 35 |
| Shaft Number Traction Type | / | 4×4 |
| Water Tank Capacity | L | 640 |
| Diesel Tank Capacity | L | 170 |
| Hydraulic Tank Capacity | L | 140+26 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

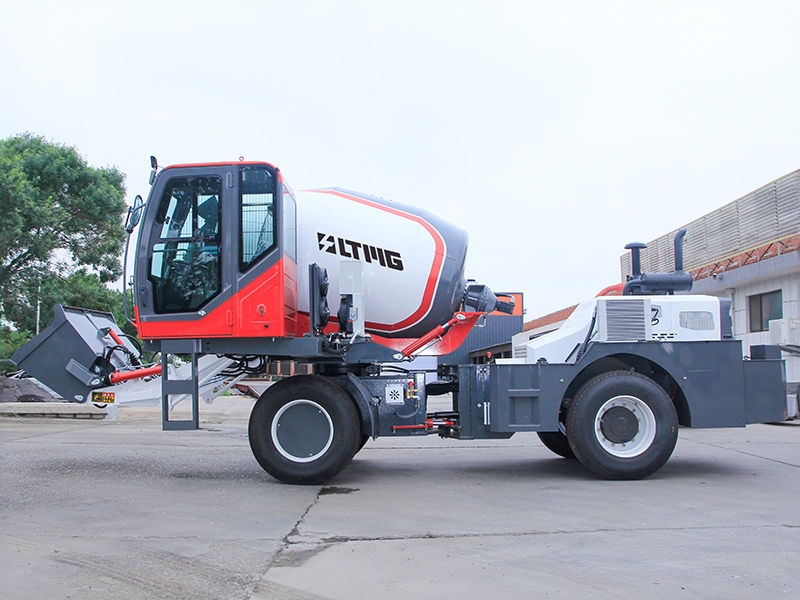

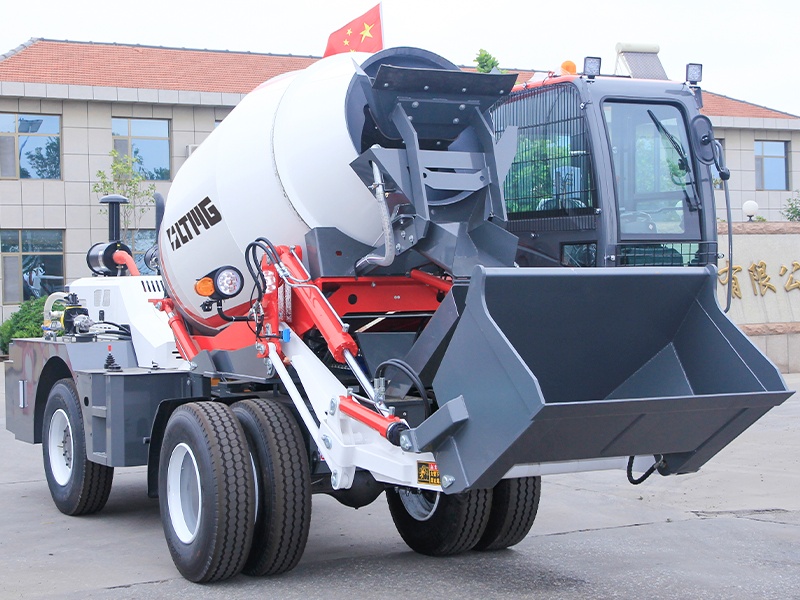

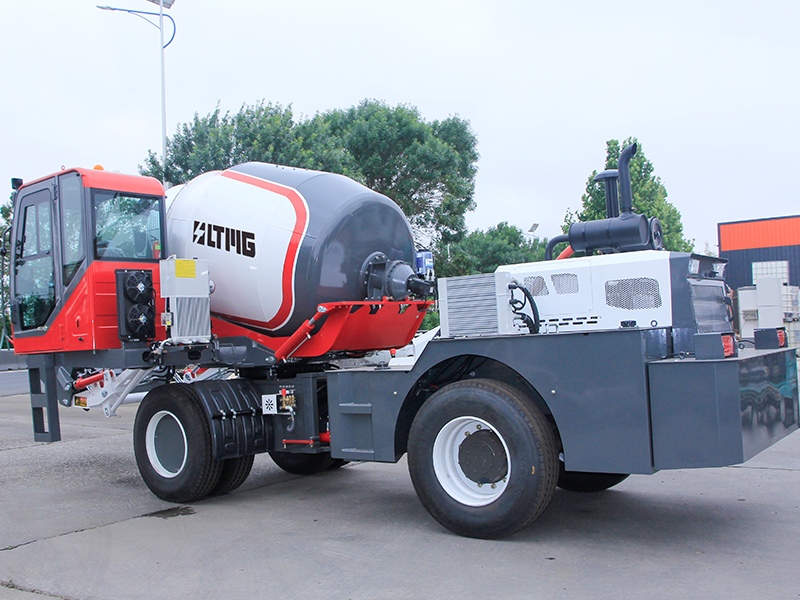

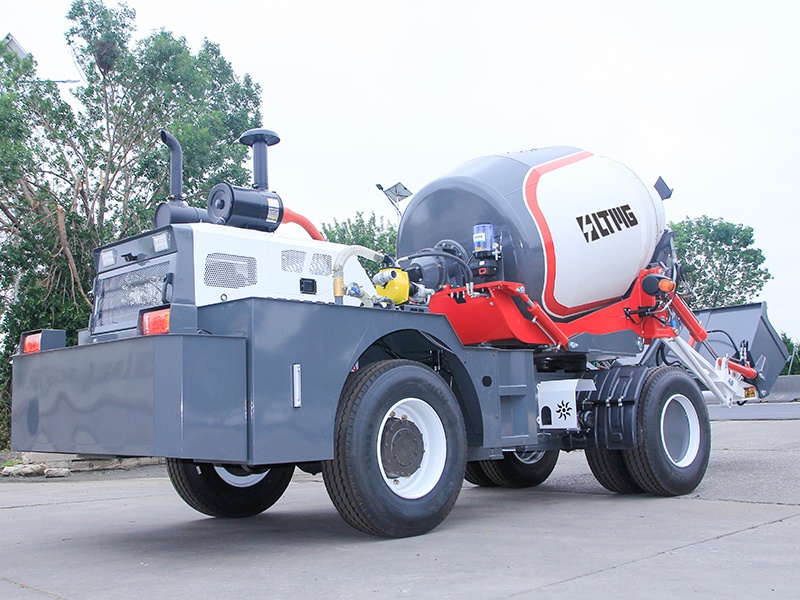

Self Mixing Concrete Truck Actual Work
The LTMG brand self mixing concrete truck is sold in many countries around the world. Customer satisfaction is increasing day by day. In the road construction and construction industries, LTMG's machines provide the best experience for each customer.
FAQ
Q: Why did you choose LTMG?
A: LTMG has been operating in the construction machinery and logistics machinery industry for more than 20 years. We have a wealth of production and sales and service experience. To get closer to raw material access and quality, LTMG is currently located in Weifang, Shandong Province, China and Xiamen, Fujian Province. Good raw material origin, casting good machine quality
Q: What are the types of concrete mixer?
A: The concrete mixer is divided into articulated and integrated. The number of cubic meters produced ranges from 2.6 to 4.2 cubic meters
Q: How fast does the concrete mixer travel?
A: The vehicle is divided into 8 gears, 4 forward 4 back, double high and low speed, it should be noted that the vehicle must be operated in low speed gear when working, the speed of the low speed gear is 10--15km/h, the high-speed gear can be used when the vehicle is empty for a long time, the speed of the high-speed gear is 30--40km/h
Q: Are concrete mixing vehicles shipped with wearing parts?
A: Yes. We will send with the machine toolbox, filter element, safety plate, tire screw, water pipe, switch, water block valve, butter nozzle and other consumable parts required by the customer.
