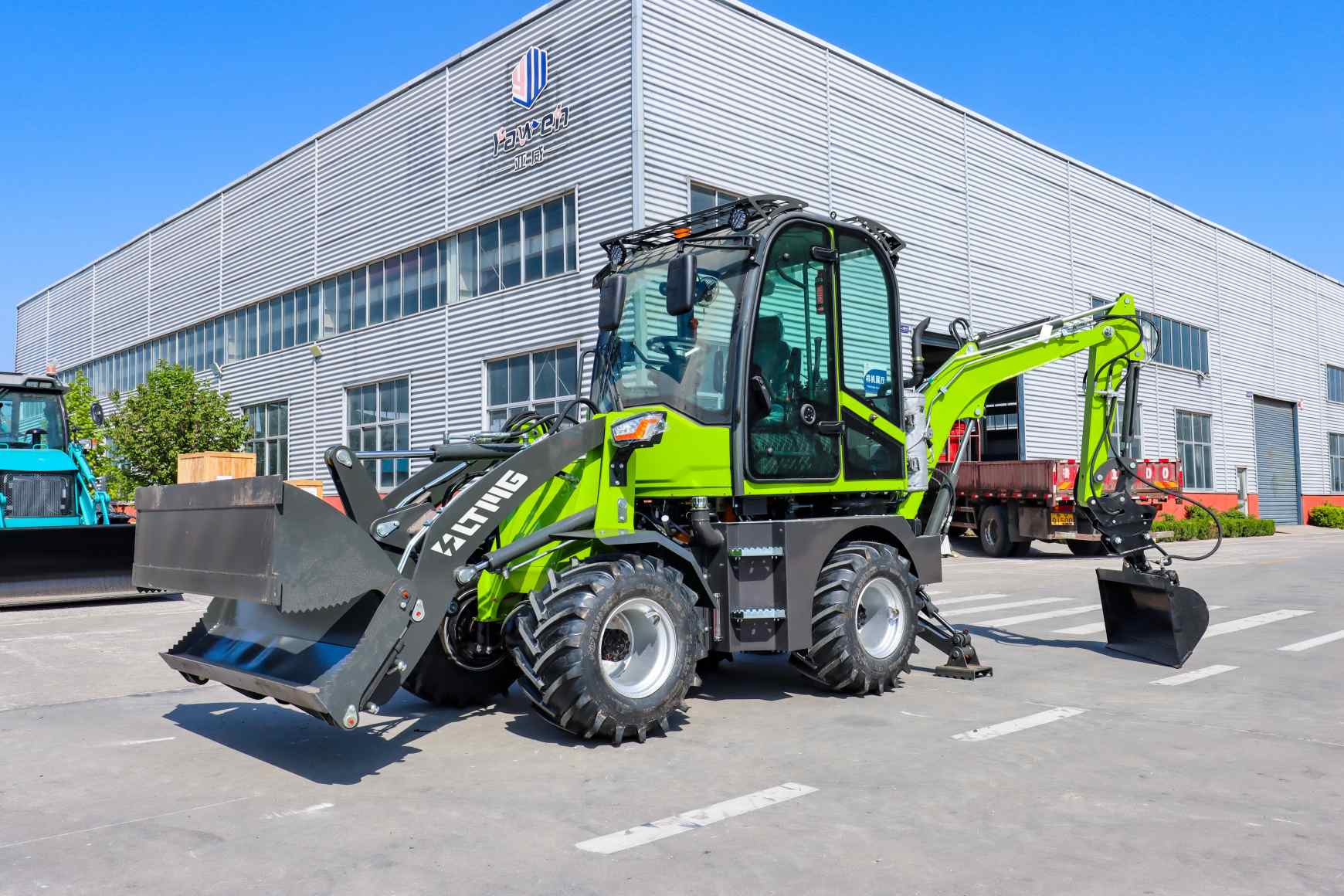

The WZ15-20 Backhoe Loader is a compact, powerful multi-purpose machine designed for digging, loading, and daily job-site tasks. With a strong structure, flexible operation, and support for various attachments, it delivers reliable performance for construction, agriculture, and municipal work.
Модель :
WZ15-20Эксплуатационная масса :
2800kgЕмкость ковша :
0.6m³ОДМ/ОЕМ :
Supoort

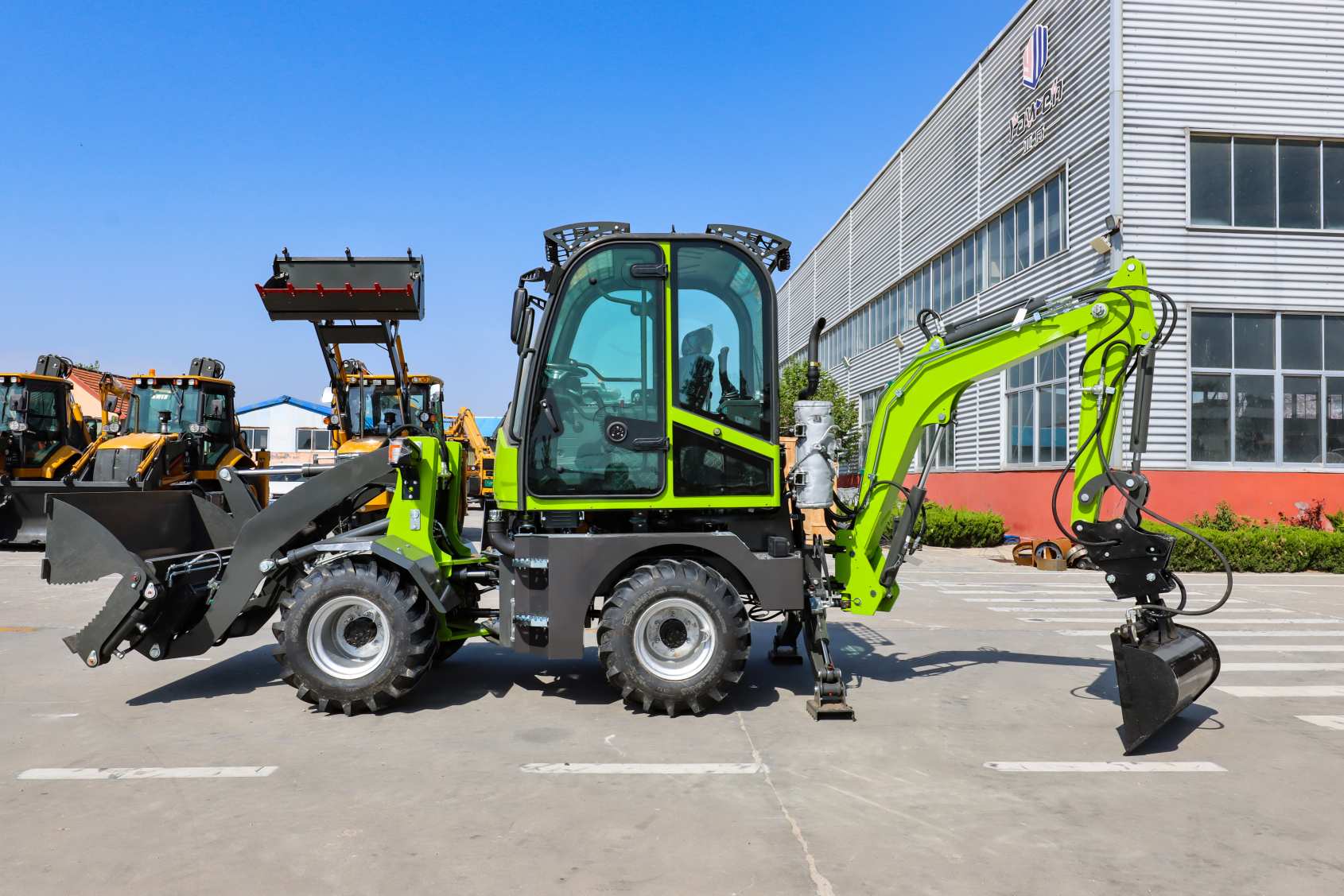

WZ15-20 Backhoe Loader
Ergonomic Comfort Cab
Designed with a user-friendly steering wheel and intuitive controls, the cab minimizes operator fatigue and improves overall working efficiency.
Heavy-Duty, Long-Life Build
Equipped with thickened, wear-resistant tires and a reinforced steel frame, the machine delivers outstanding durability in harsh job-site conditions.

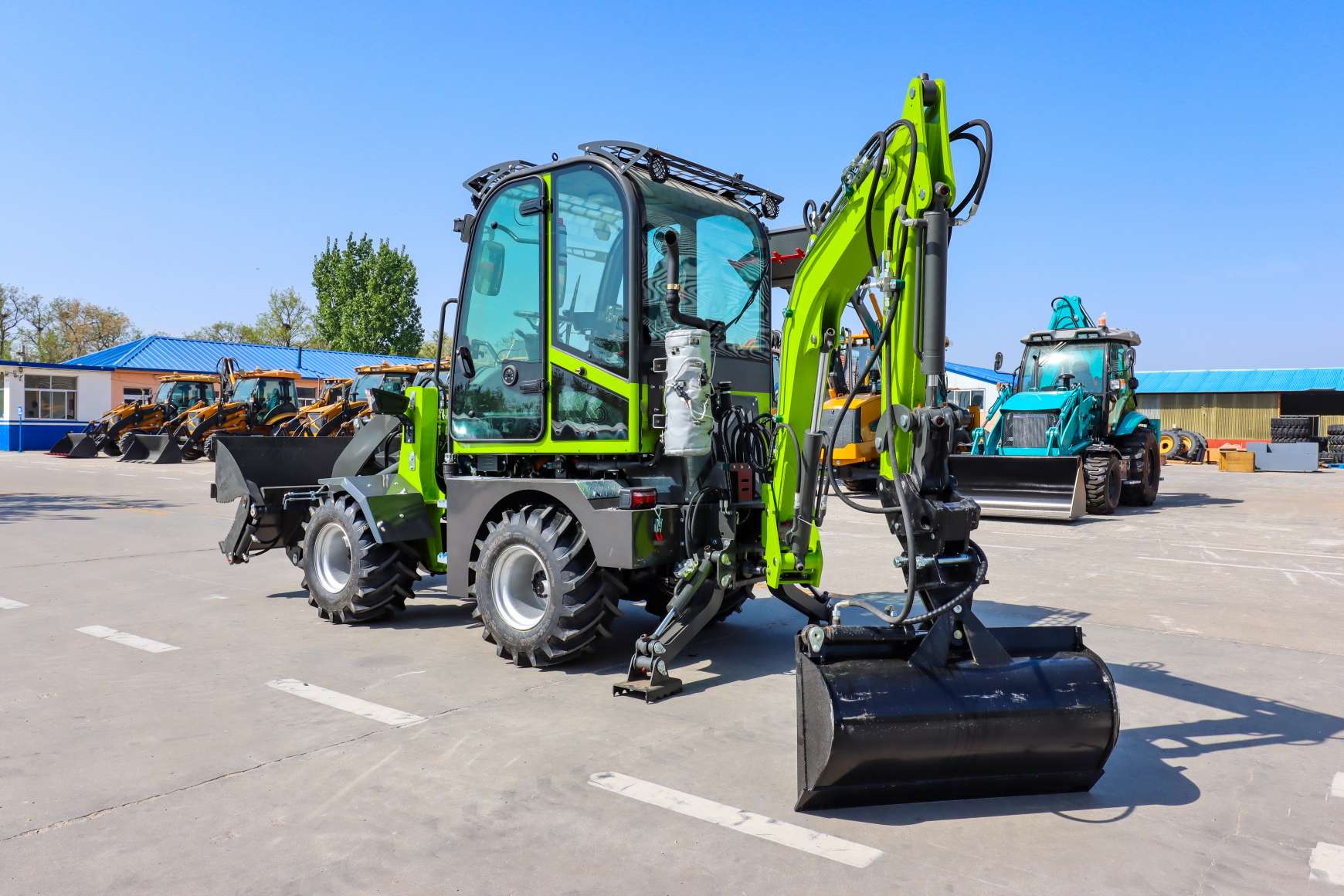

Advanced Slip-Track System
The excavator’s slip-track structure enables smooth side-digging, folding operations, and free sliding, providing greater flexibility in narrow or complex working environments.
High-Capacity, Reinforced Bucket
A larger bucket, upgraded bucket teeth, and wear-resistant guard plates ensure excellent digging performance and extended service life.
WZ15-20 Backhoe Loader Technical Parameters
|
Model |
WZ15-20 |
|
Overall dimensions（mm) |
5200*1600*2560 |
|
Minimum Ground Clearance（mm) |
220 |
|
Wheelbase（mm） |
1120 |
|
System Pressure（Mpa) |
16 |
|
Operating Weight（kg) |
2800 |
|
Maximum speed（Km/h) |
25 |
|
Max. Climbing Capacity ( ° ) |
25 |
|
Min.Turning Radius（mm) |
2310 |
|
Max. lifting height（mm) |
3100 |
|
Max. unloading height（mm) |
2430 |
|
Max. load capacity（kg) |
1000 |
|
Bucket width（mm) |
1600 |
|
Capacity (m³) |
0.6 |
|
Bucket Capacity（mm) |
0.12 |
|
Bucket Width（mm) |
475 |
|
Boom Length（mm) |
1860 |
|
Max. digging radius（mm) |
3500 |
|
Max. digging depth（mm) |
2350 |
|
Max. digging height（mm) |
3360 |
|
Unloading height（mm) |
2280 |
|
Rotation angle(rpm) |
180 |
|
Steering angle ( ° ) |
38 |
|
Model |
Yunnei 490 |
|
Rated power（KW) |
37 |
|
RPM（r/min) |
2400 |
|
No. of cylinders - |
4-90 |
|
Moving brake |
Air Top Oil Caliper Disc |
|
Parking brake |
Manual |
|
Driving Type |
4-Wheel Drive |
|
Transmission Type |
hydrodynamic speed change |
|
Diesel Tank Capacity（L） |
47.5 |
|
|
47.5 |
With technological innovation, our product configuration and parameters will continue to change without notice.
If there is any doubt, the specific confirmation of our international trade sales shall prevail.
Attachments & Applications
With the right attachments, a backhoe loader transforms into a true multi-purpose machine. Buckets, breakers, augers, pallet forks, and other tools allow it to handle digging, lifting, roadwork, agriculture, and site maintenance. One machine delivers multiple functions—improving efficiency, reducing costs, and adapting easily to different job needs.
