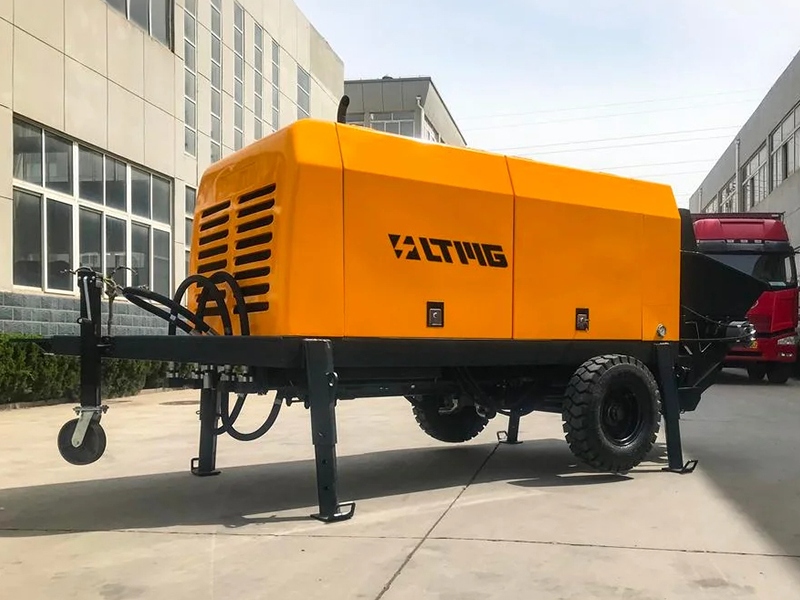

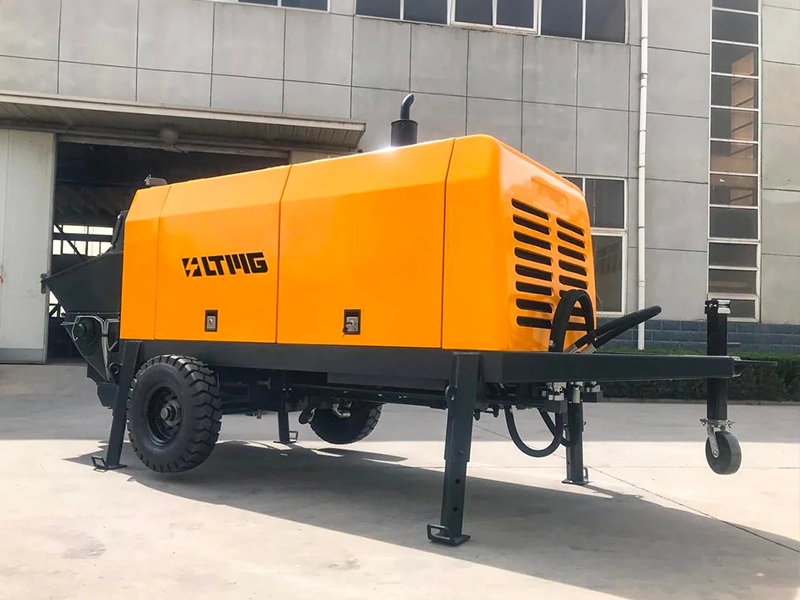

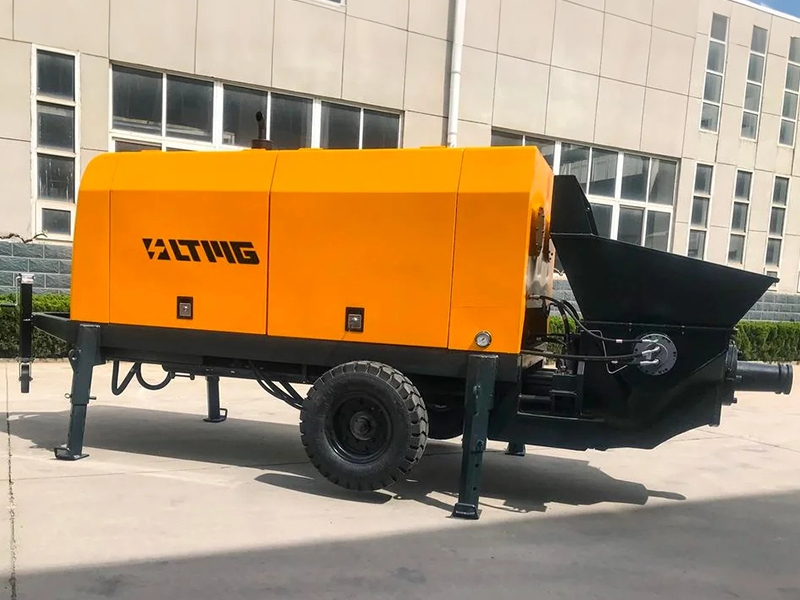

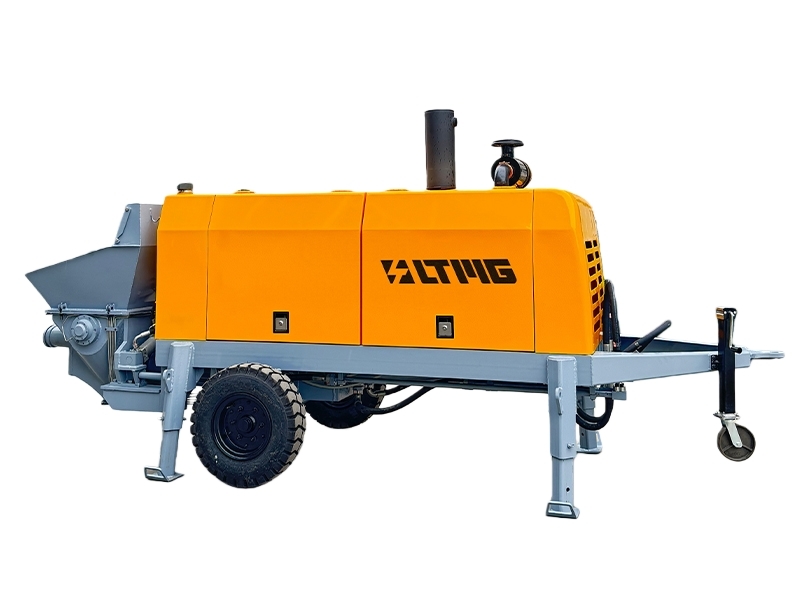

Built for demanding concrete delivery, the HBT50-13-72 concrete pump provides up to 48 m³/h output, 13 MPa pressure, and 550 m horizontal reach. Intelligent control, wireless remote operation, automatic lubrication, and a wear-resistant S-valve ensure reliable performance for high-rise, bridge, tunnel, and infrastructure projects.
Модель :
HBT50-13-72Maximum theoretical concrete output (L./H.) :
48/29 m³/hMaximum concrete pumping pressure (H. /L.) :
13/7 MPa
The Features Of The Concrete Pump
1. Intelligent Electronic Control System: Automatically adjusts the diesel engine speed to ensure smooth operation while improving fuel efficiency.
2. Advanced S-Tube Valve Structure: Uses an S-tube valve with a floating seal that automatically compensates for gap wear, delivering excellent sealing performance.
3. Wear-Resistant Key Components: The spectacle plate and cutting ring are made from high-hardness, wear-resistant alloy materials, helping extend their service life.
4. High Outlet Pressure: Provides strong outlet pressure to meet the conveying needs of high-rise buildings and long-distance construction projects.
5. Air-Cooled Hydraulic Oil Cooling System: Adopts an advanced air-cooling heat dissipation system, eliminating the need for a water source and making operation easier.
The Specification Of The Concrete Pump
| Parameter | Unit | HBT50-13-72 |
| Maximum theoretical concrete output (L./H.) | m3/h | 48/29 |
| Maximum concrete pumping pressure (H. /L.) | MPa | 13/7 |
| Maximum delivering distance (vertical / horizontal) | m | 180/550 |
| Concrete valve type | S Valve | |
| Concrete cylinder diameter × stroke length | mm | Ф180×1000 |
| Outlet inner diameter | mm | Ф125 |
| Delivering pipe inner diameter | mm | Ф125 |
| Maximum aggregate diameter | mm | Pebbles : 50 |
| Gravel : 40 | ||
| Hopper capacity × hopper height | L×mm | 500×1100 |
| Lubrication system | Automatic greaser | |
| High-low pressure conversion | Yes | |
| Remote control | Wireless | |
| Diesel engine | R4105ZD2 | |
| Rated power | KW | 72 |
| Rated speed | r/min | 1800 |
| Rated fuel consumption | L/h | 12.5 |
| Hydraulic system | Open loop | |
| Hydraulic pump displacement | mL/r | 112 |
| Pumping system pressure | MPa | 32 |
| Stirring system pressure | MPa | 12 |
| Hydraulic tank capacity | L | 320 |
| Length × width × height | mm | 4850×1670×1700 |
| Main weight | Kg | 3360 |
| Total weight | Kg | 4500 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
More about LTMG Machinery
FAQ
Q: Do you have after-sale service?
A: Yes, LTMG provides our customers with good and comprehensive after-sale service, handling the customers complaint and solve problem for customers.
Q: Can we customize the machine to fit our unique requirements, and even incorporate our logo?
A: Certainly, our machines are adaptable to your distinct specifications, and we provide the choice to integrate your logo.
Q: Why Choose Us?
A: As a manufacturer, LTMG Idustry is not only committed to providing high-quality products and performance, as well as competitive prices, but also to timely delivery and 24-hour after-sales service.
Q: What about the Minimun Order Quantity?
A: The MOQ is 1 pcs.
