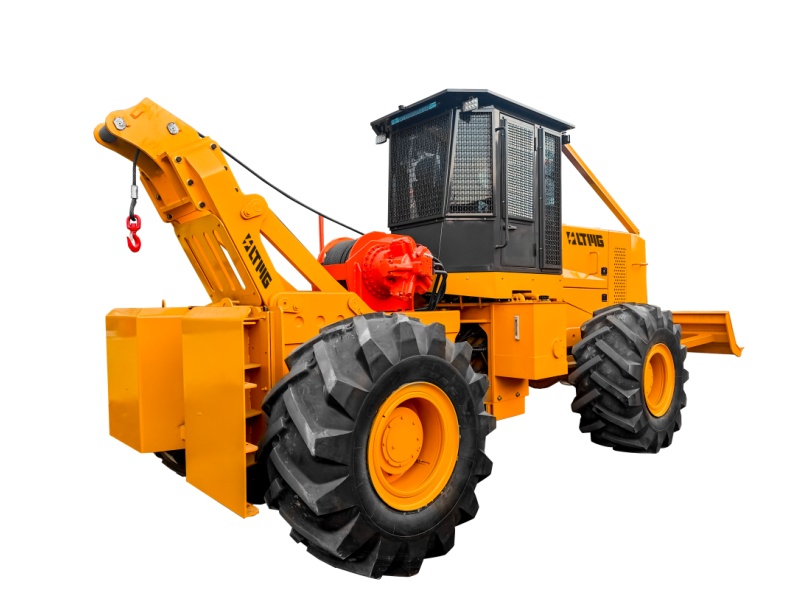

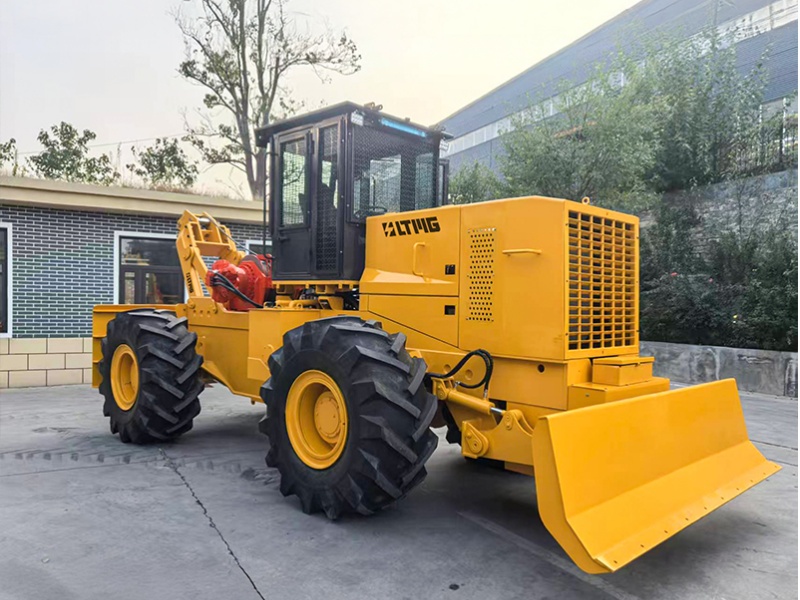

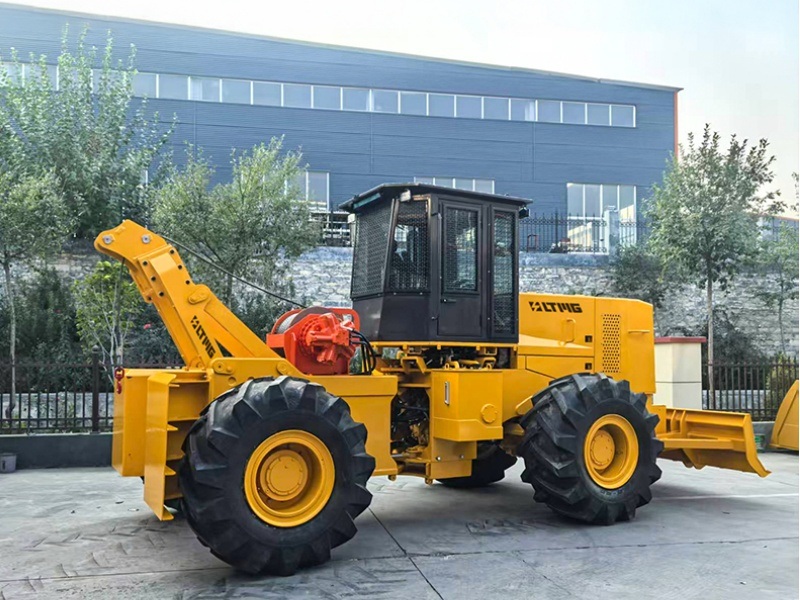

220hp log skidder, Central articulated frame with a small turning radius ensures excellent maneuverability and stability in narrow spaces. Steyr turbo-charged diesel engine delivers high power and torque with low fuel consumption, while the twin hydraulic system maximizes lift and breakout forces. Ergonomic controls, full hydraulic steering, and durable brakes provide safe, comfortable, and efficient operation.
Модель :
SK220Масса :
17000kgОДМ/ОЕМ :
Support
Parameters of a 220-horsepower log skidder
| overall weight | 17000kg |
| winch drive type | hydraulic motor drive |
| maximum tractive force | 172KN |
| maximum wire rope speed | 10 m/min |
| maximum grade ability | 30℃ |
| drum capacity | 20*100 |
| diameter of Winch drum（cable type） | 1020 |
| lifting height of push plate | 819mm |
| Earth cutting depth of push plate | 218mm |
| overall dimension (L×W×H) | 7300×3050×3550mm |
| minimum turning radius | 6300mm |
| model | WeichaiWP10G220E22 |
| inline water cooling dry cylinder injection | |
| No. of cylinder-bore/stroke | 6－126×130mm |
| rated power | 162kw--2000r/min |
| maximum torque | 920N.m |
| min fuel-consume ratio | ≤215g/kw.h |
| gear shift | 4forward shift 4reverse shift |
| maximum speed | 41km/h |
| main reducing spiral | bevel gear grade 1reduction |
| decelerating mode | planetary reduction, grade 1 |
| wheel base (mm) | 3450mm |
| wheel tread | 1750mm |
| minimum ground clearance | 430mm |
| system working pressure | 18MPa |
| boom lifting time | 1.5S |
| fuel tank capacity | 280L |
| service brake | air over hydraulic disc brake on 4 wheels |
| parking brake | manual parking brake |
| type specification | 23.5-25 |
| front tyre pressure | 0.4Mpa |
| rear tyre pressure | 0.35Mpa |
With technological innovation, our product configuration and parameters will continue to change without notice;
If there is any doubt, the specific confirmation of our international trade sales shall prevail;

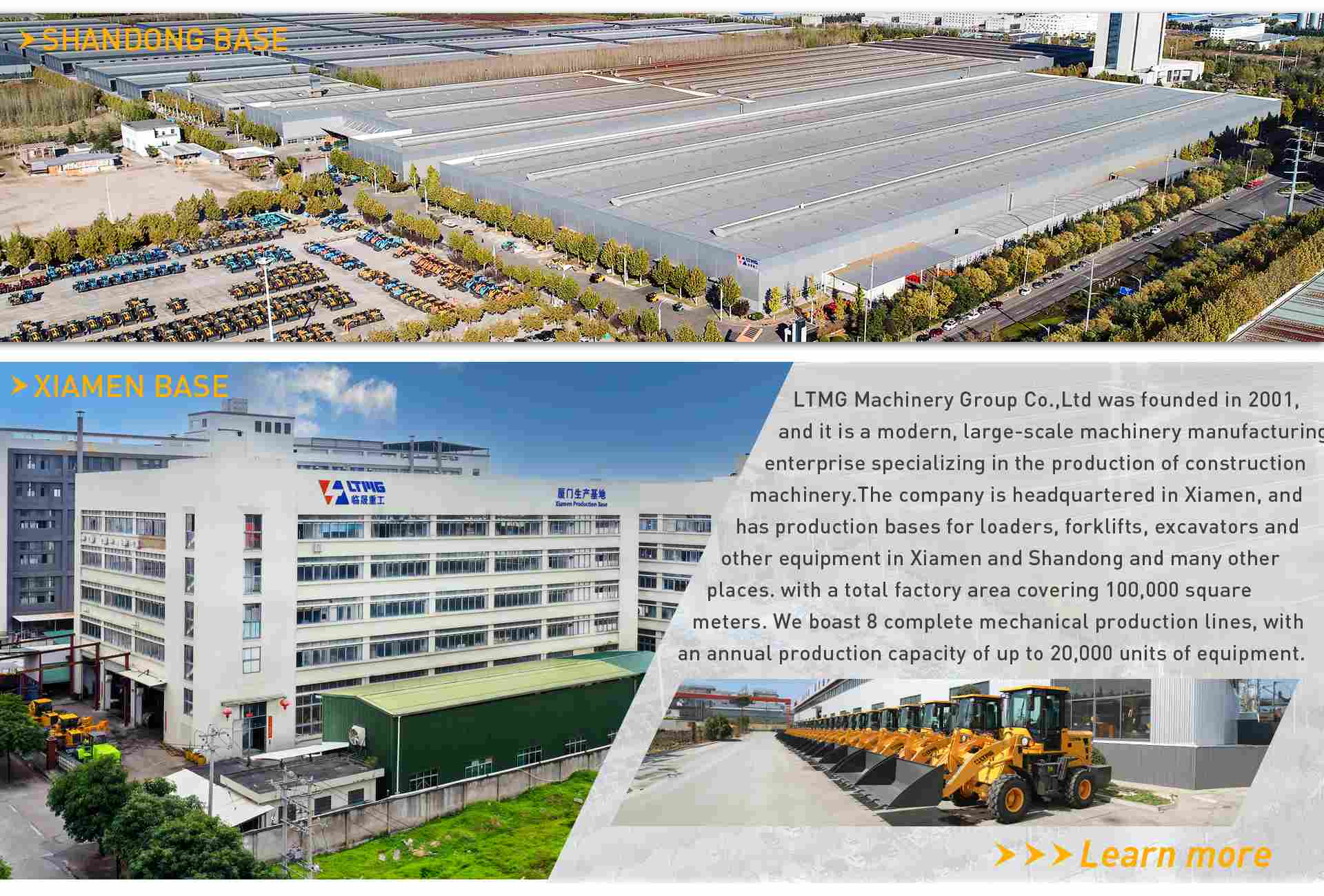

Reliable Factory Manufacturing
