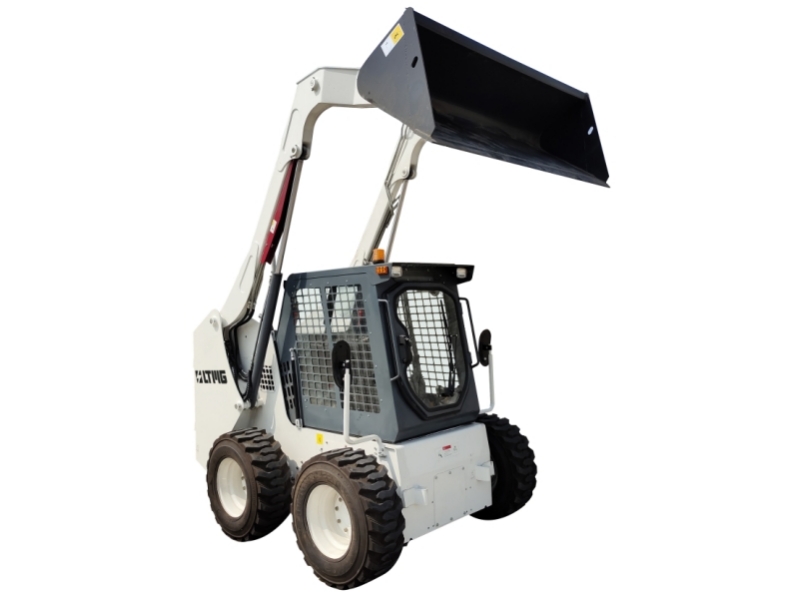

Модель :
LT75Грузоподъемность :
1100kgЭксплуатационная масса :
3810kgЕмкость ковша :
0.53m³
Cab：ROPS & FOPS cab, equipped with seat belts and a bumper, safeguards the operator's personal safety and offers ample cab space.
Operation Of The Entire Machine：The structure is compactly arranged, with a low overall centre of gravity, ensuring excellent stability and strong adaptability to various sites.
Boom：The high-strength seamless rectangular boom design ensures the main boom remains fatigue-resistant and free from damage during prolonged, high-intensity continuous operation.
Tire：The tyres are 12-16.5 vacuum-type tyres, offering excellent elasticity and wear resistance, suitable for use on a variety of different road surfaces.

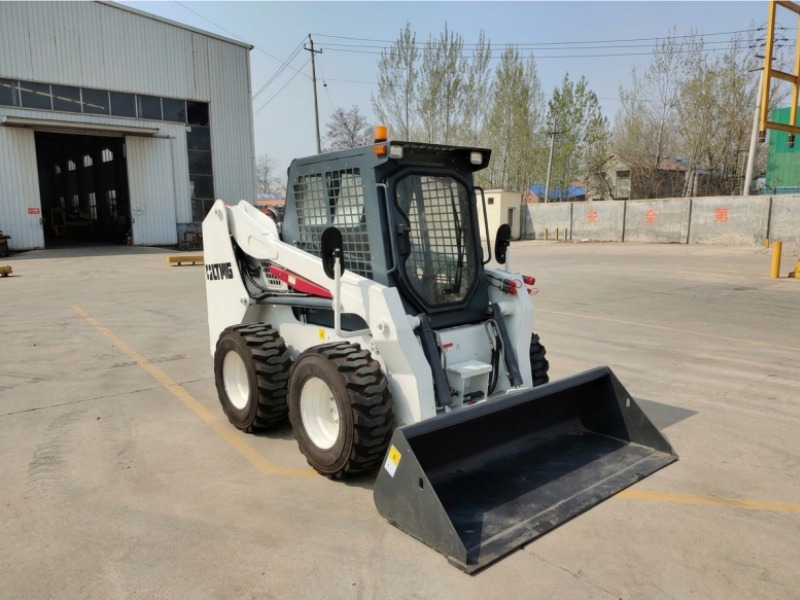

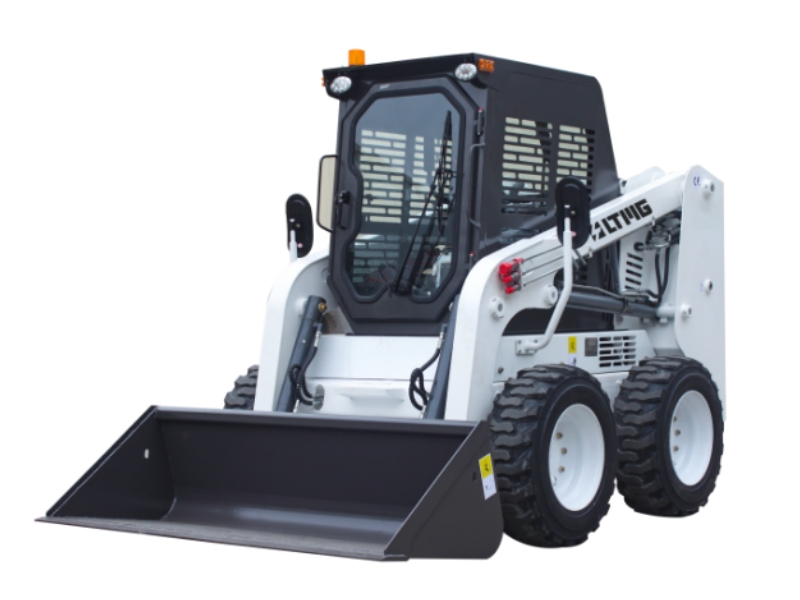

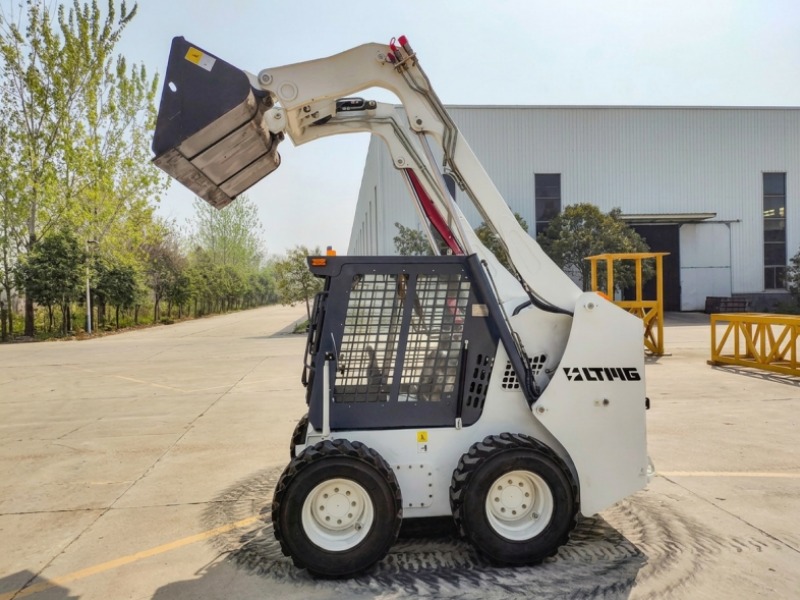

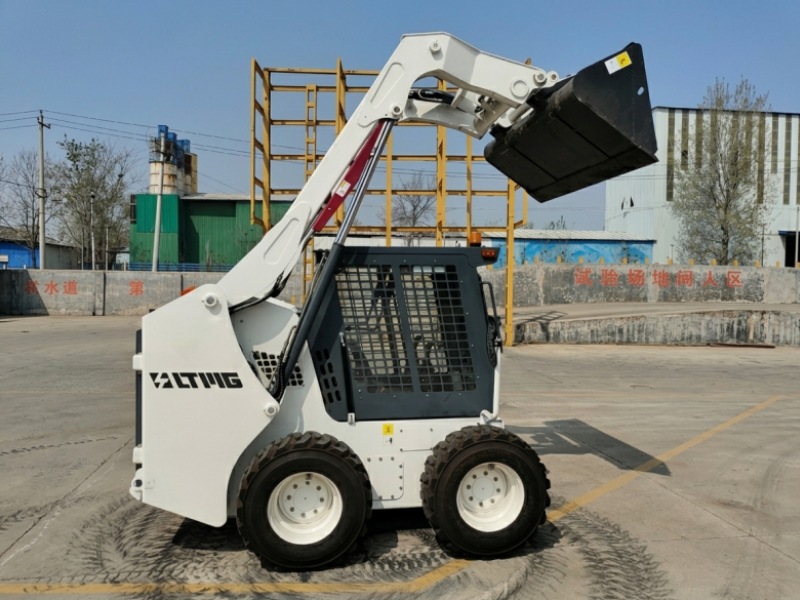

LT75 Skid Steer Loader Technical Specifications
| Model | LT75 |
|
Engine Model |
QUANCHAI4C6-88C33 |
|
Rated Power |
65KW |
|
Rated Speed |
2200rpm |
|
Max. Speed |
11.2/22.4km/h |
|
Tire |
12-16.5 |
|
Operating Load |
1100kg |
|
Max. Loading |
2200kg |
|
Lifting Type |
Radial |
|
Total Cycling Time |
9s |
|
Bucket Capacity |
0.53m³ |
|
Pressure of Working System |
235bar |
|
Rated Flux |
76L/min |
|
High Flow Flux |
140L/min |
|
Fuel Tank Capacity |
106L |
|
Self-weight With Bucket |
3810kg |
|
Control Bucket |
Manual/Joysticke |
|
Overall Operating Height |
4143mm |
|
Height To Bucket Hinge Pin |
3205mm |
|
Height To Top of Cab |
2065mm |
|
Height To Bottom of Level Bucket |
3010mm |
|
Overall Length Without Bucket |
2857mm |
|
Overall Length With Bucket |
3649mm |
|
Dumping Height |
2460mm |
|
Dumping Reach |
590mm |
|
Rollback of Bucket On Ground |
30 |
|
Ground Clearance |
195mm |
|
Angle of Departure |
26 |
|
Front Turning Radius without Bucket |
1338mm |
|
Front Turning Radius |
2174mm |
|
Rear Turning Radius |
1746mm |
|
Width (Standard Tire) |
1798mm |
|
Bucket Width |
1910mm |
With technological innovation our product configuration and parameters will continue to change without notice.

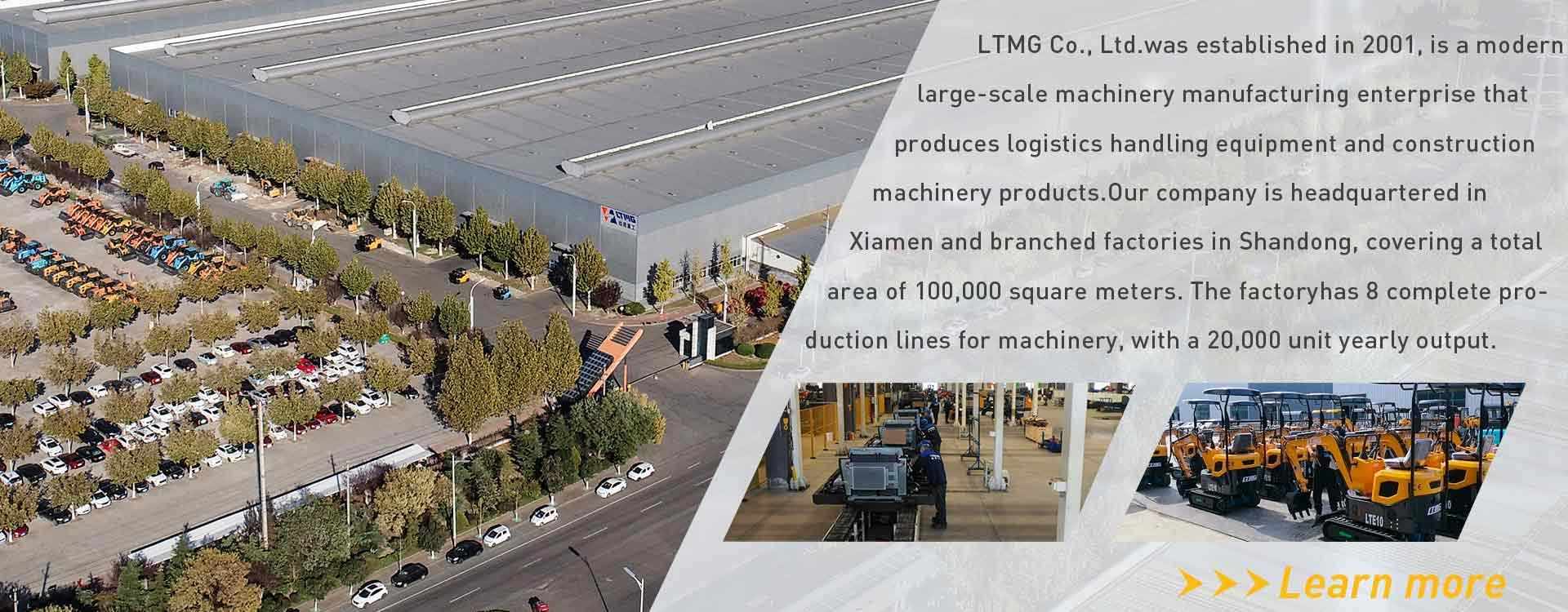

About LTMG

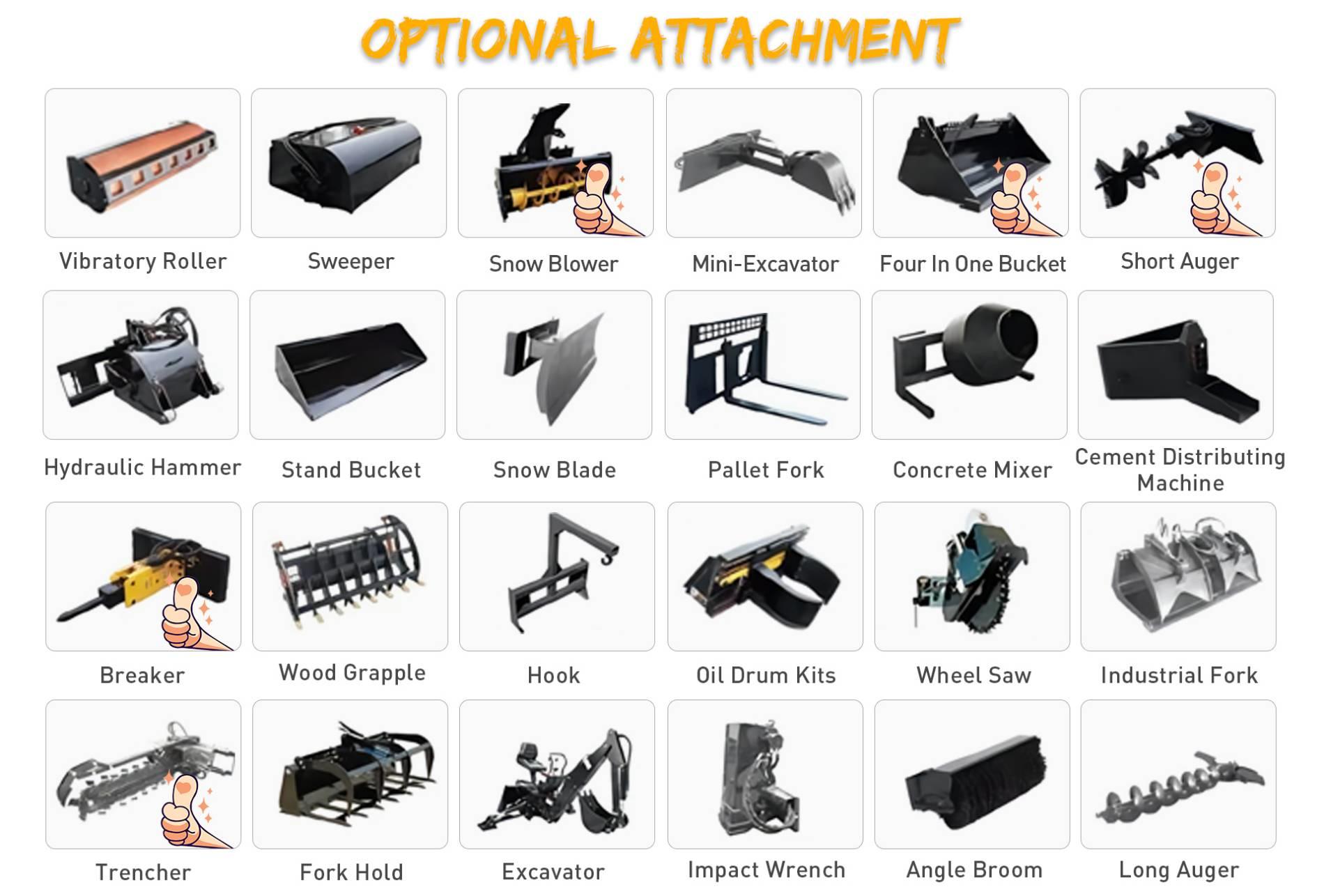

Skid steer loader attachments
Skid steer loader review
FAQ
A skid steer loader is a compact machine used for construction, landscaping, and material handling tasks. It can work with different attachments to improve job site efficiency.
What is the advantage of a high flow skid steer loader?
A high flow system provides greater hydraulic output, allowing the machine to operate more powerful attachments for demanding applications.
